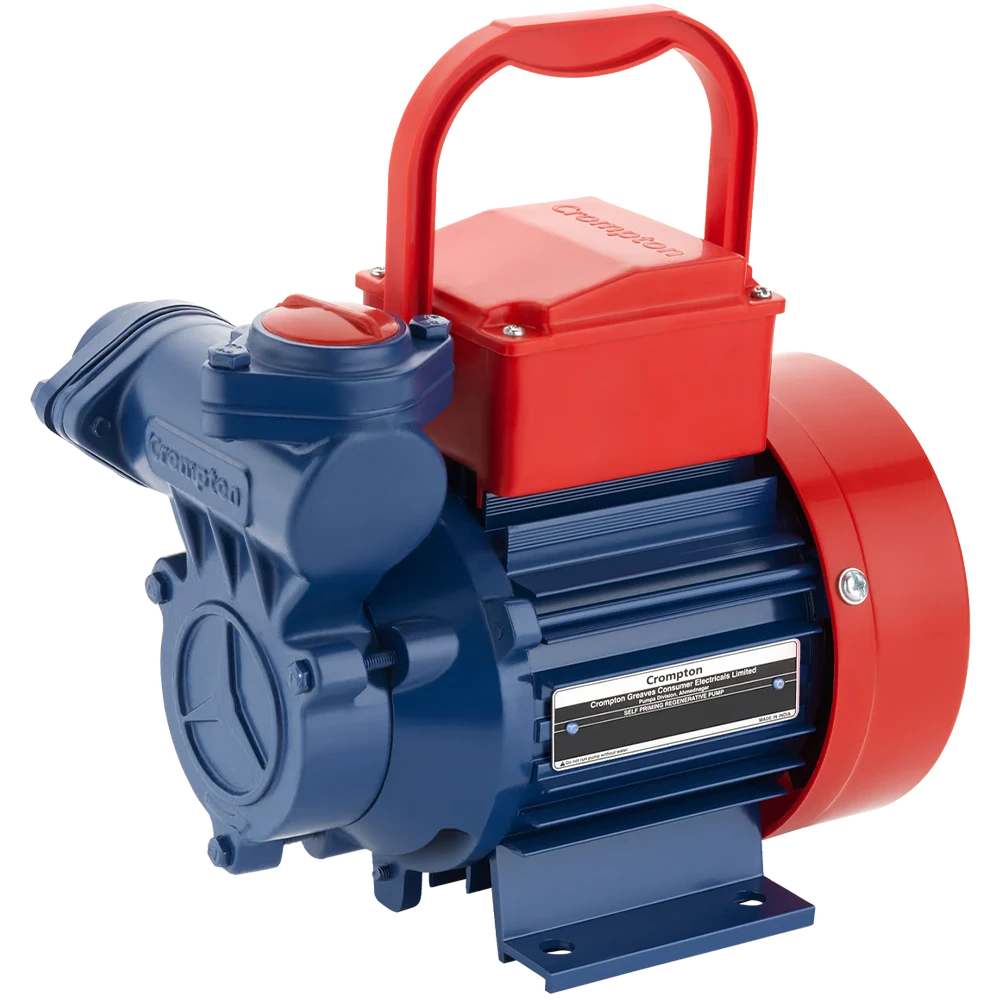

Crompton Mini Champ Plus II | 0.5 HP (0.37 kW) Copper Motor | Nepal

About Crompton Mini Champ Plus II | 0.5 HP (0.37 kW) Copper Motor | Nepal

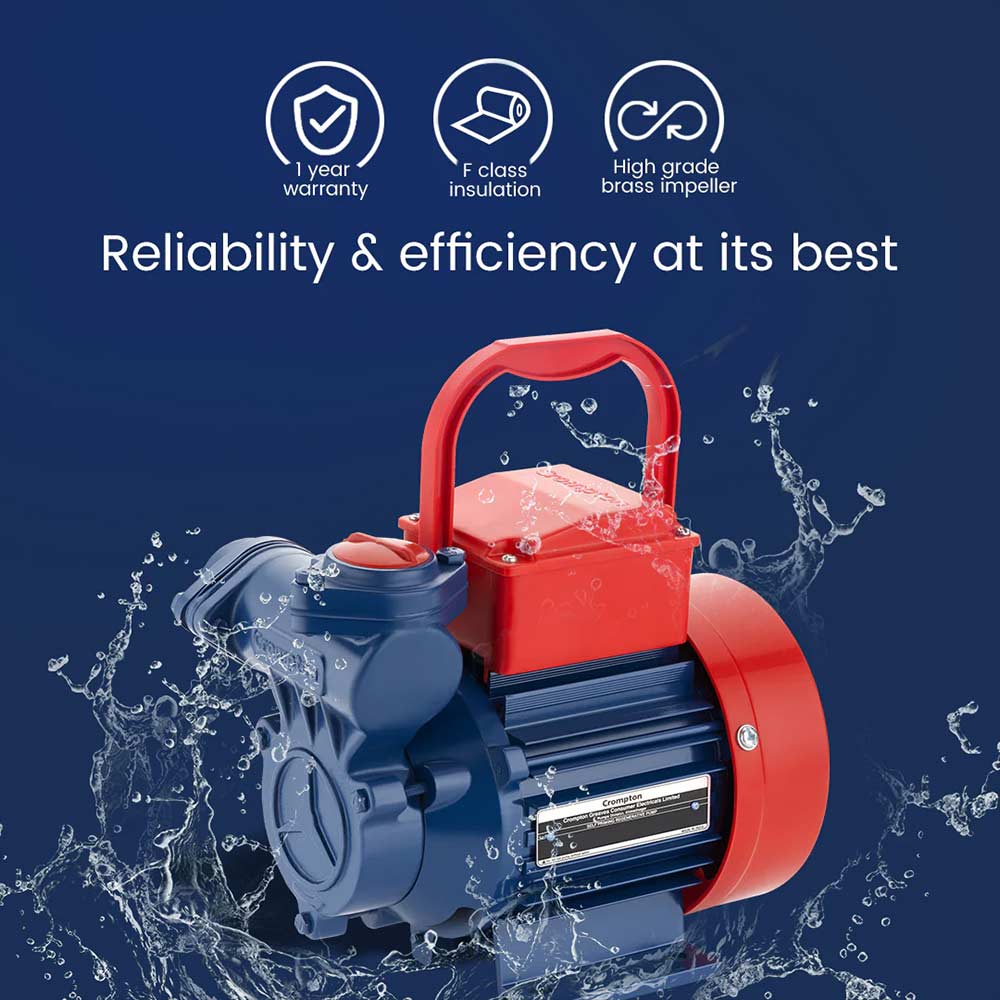

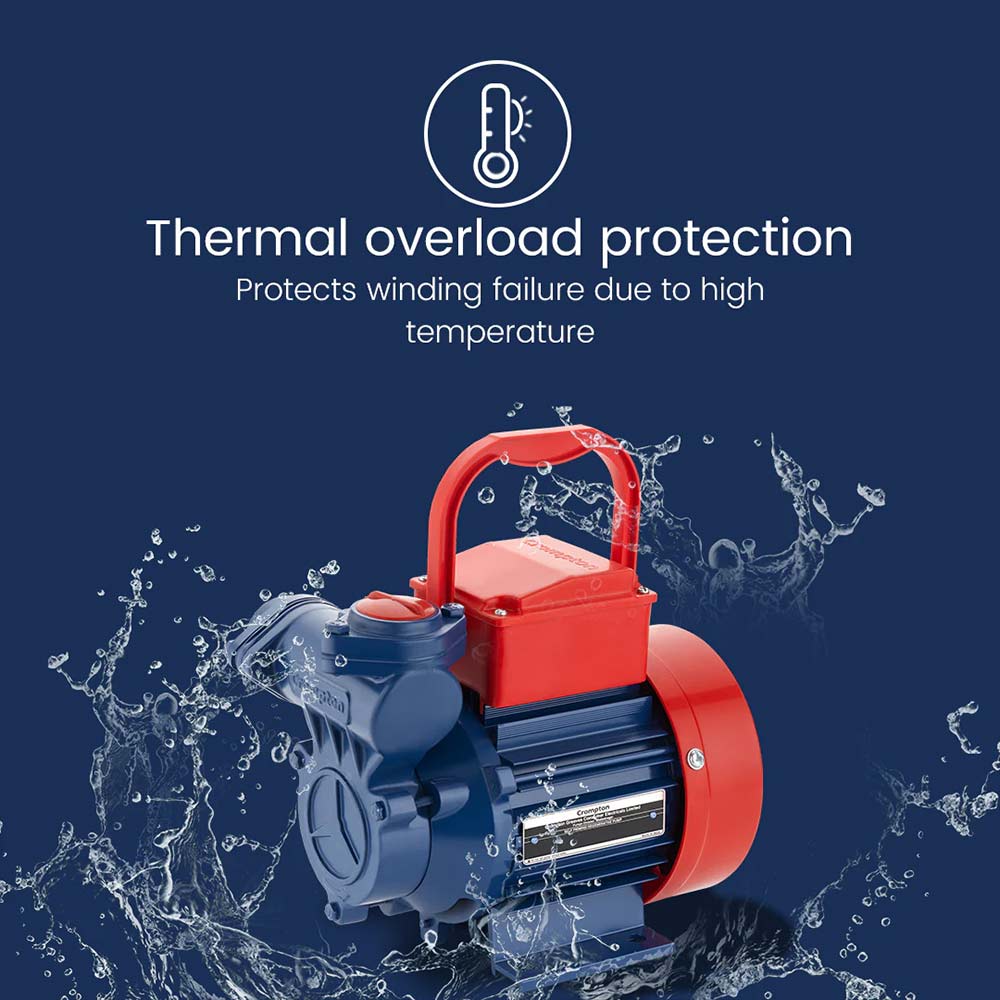

The Crompton Mini Champ Plus II is a compact yet powerful regenerative pump built for long-lasting performance. Featuring a high-grade aluminum die-cast body for better heat dissipation and a brass impeller to prevent rust, this pump is engineered to handle the typical water-lifting needs of a 1–2 story building. Its self-priming capability ensures that it can restart easily even if air enters the suction line. Key Features & Benefits: Efficient 0.5 HP Motor: The 0.37 kW motor is optimized for low power consumption while providing a maximum head of 21 meters, ideal for standard residential heights. Superior Material Quality: Comes with a brass impeller and a high-quality mechanical seal, which significantly reduces the chances of jamming and leakage. Forced Air Cooling: The motor is equipped with an external cooling fan and a specially designed body to ensure it stays cool during extended operation, even in the heat of the Terai. Self-Priming Technology: Can pull water from a suction lift of up to 8 meters, making it effective for drawing water from underground tanks or shallow boring. Thermal Overload Protector (TOP): Includes a built-in safety switch that automatically shuts off the motor if it starts to overheat, preventing permanent damage. Compact & Quiet: Its small footprint allows for easy installation in tight spaces, and it operates with a lower noise profile compared to industrial-grade pumps. Real-World Application: Why it’s the 2026 Choice in Nepal Imagine you are supplying water for a small house in Itahari or filling a tank in Biratnagar. The "Voltage" Win: This pump is designed to operate within a wide voltage range (180V - 240V). This is crucial in many parts of Nepal where electricity can fluctuate, ensuring the pump doesn't stall or burn out easily. The "Space" Win: Its compact design is perfect for modern urban homes where pump space is often limited to a small corner under the stairs or near the main water line. Vanijay Installation & Maintenance Tips Tip 1: Protect from Rain: While the body is durable, always install the pump under a small shed or cover to protect the electrical components from direct rain and sunlight. Tip 2: Use a Quality Foot Valve: To maximize the self-priming efficiency and prevent the pump from losing water, use a high-quality brass foot valve on the suction pipe. Tip 3: Periodic Cleaning: Every 6 months, check the cooling fan at the back for any dust or debris. A clean fan ensures the motor stays cool and lasts for years.
